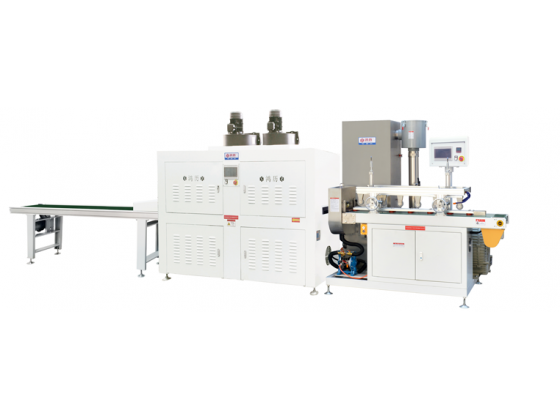

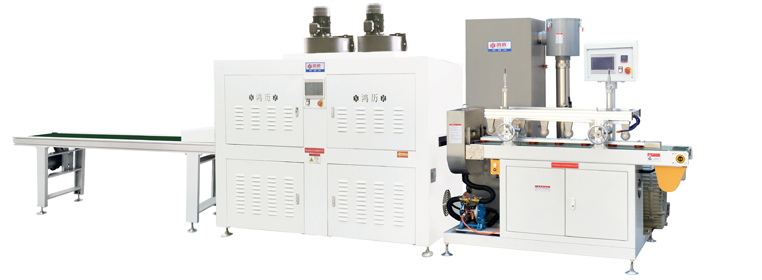

HL-Z300B / HL-Z400B

      真空噴涂的原理是利用真空技術，通過密閉容器內的高壓泵壓送涂料，高壓的涂料高速噴出，隨著壓力驟降，UV涂料驟然膨脹并霧化,將涂料均勻包覆在工件表面。噴涂過程在封閉的箱體內進行，霧化穩定，所形成的涂膜均勻、平整。真空噴涂機目前主要應用于木制品行業，是家具門窗線條、百葉、圓棒等有溝槽的直線條狀工件噴涂設備，一次完成整個工件的四面噴涂。雙真空系統，滿足不同工藝需求，提升作業便利性

      The principle of vacuum spraying is to use vacuum technology to pump paint through a high-pressure pump in a closed container. The high-pressure paint is sprayed out at high speed, and as the pressure drops sharply, the UV paint suddenly expands and atomizes, evenly coating the surface of the workpiece. The spraying process is carried out in a closed box, with stable atomization and a uniform and smooth coating film formed. Vacuum spraying machines are currently mainly used in the wood products industry. They are equipment for spraying straight and strip-shaped workpieces with grooves, such as furniture door and window lines, louvers, and round bars. The entire workpiece can be sprayed in one go.Dual vacuum system, meeting different process requirements and improving operational convenience

生產線工藝流程

Production line work

上料→ 真空噴涂機 →UV干燥機 →  輸送機

Paper → vacuum deposition machine → UV drying machine → conveyor machine

產品特點

Product Features

適用于門框、門線、畫框、窗簾架、舌槽企口板、門窗配件、地腳線、地板等條狀工件連續自動噴涂。此機可針對UV、水性涂料進行大批量連續涂裝，噴涂均勻，油漆利用率100%，本機采用不銹鋼機身，耐酸堿。若噴涂水性涂料可與橫向平移干燥機配套使用，干燥效果更佳。

Designed for furniture lines, frame, curtain rod, a gate line, stude screws line, floor, and various kinds of complex product line profile, spraying water paint or UV light curing primer, water-borne UV paint materials and professional design. Spray coating process are carried out within the vacuum box, paint 100% recycled, UV primer or paint drying, to speed up the paint curing time, save energy and improve production efficiency.
